Description
Specifications
- Lead Mode : Standard 12-lead ECG
- Recording Duration : Up to 48 hours continuous
- Sampling Accuracy : 12-bit
- Sensitivity : 10 mm/mV ±5 %
- Noise Level : ≤30 µV p-p
- CMRR : ≥60 dB
- Frequency Response : 0.5 Hz–55 Hz (−3 dB)
- Minimum Measurable Signal : 50 µV p-p
- Display : OLED or similar status screen (varies by unit)
- Dimensions : ~80.5 × 59.5 × 22 mm
- Weight : ~61.5 g (without batteries)
- Power Supply : AAA batteries (typically 2)
- Storage Media : TF/SD card support
highlights
- 12-Lead Synchronous Recording: High fidelity cardiac data collection for accurate diagnosis.
- Long-Duration Data Capture: Records ECG continuously up to 48 hours, enabling detection of episodic cardiac events.
- Portable & Comfortable: Ultra-lightweight design suitable for ambulatory patients
- Easy Integration with PC Software: Allows clinicians to analyze, edit, and print detailed reports.
in the box

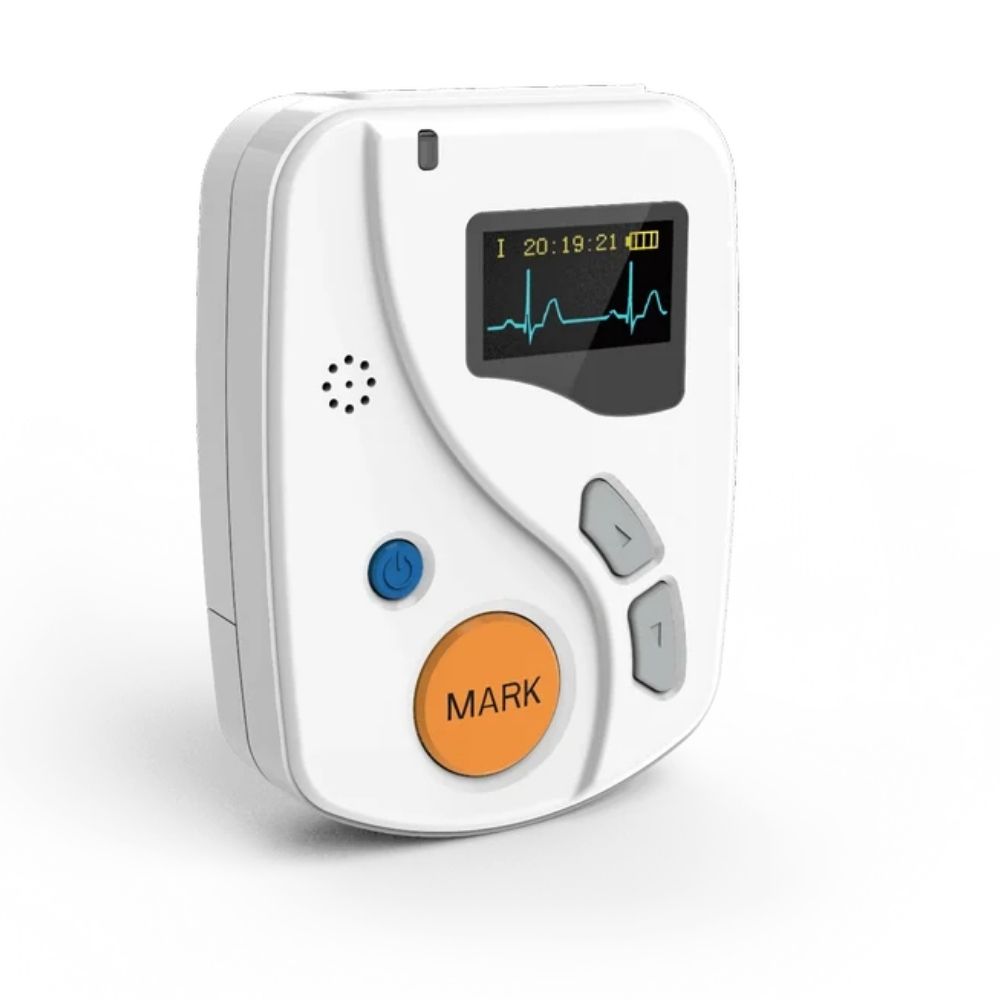

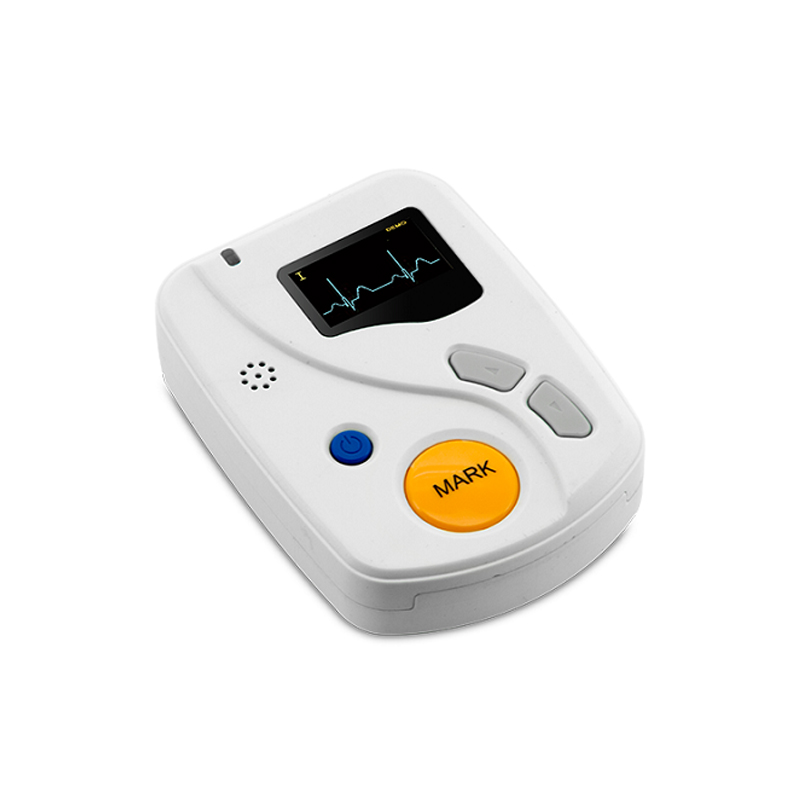

- TLC6000 Holter ECG Recorder Unit — Main holter device
- 12-Lead ECG Cable Set — For electrode connection
- ECG Electrodes — Pack of disposable electrodes
- TF/SD Memory Card — For data storage (may vary by seller)
- USB Cable — For PC data transfer
- Analysis Software — PC software for review and reporting
- Carrying Pouch / Bag — For storage and portability
- User Manual & Warranty Card — Instructions and warranty info
Use Cases :
- Ambulatory ECG Monitoring: Detect intermittent arrhythmias that might be missed in resting ECGs.
- Pacemaker Follow-Up: Evaluate pacemaker function over daily life activities.
- Post-MI Risk Assessment: Heart rate turbulence and QT dispersion analysis help assess risk after myocardial infarction.
- Clinical Diagnostics in Cardiology: Detailed ECG analysis for arrhythmia, conduction disorders, and ischemia.
- Research & Clinical Studies: Long-term ECG data collection for studies and trials.
Key Features :
- Standard 12-Lead ECG Recording: Simultaneous synchronous recording of all 12 leads for comprehensive cardiac assessment.
- Extended Monitoring (24–48 Hours): Capable of continuous ECG capture for up to 48 hours for ambulatory use.
- Advanced Arrhythmia Detection: Includes templates for atrial/ventricular premature beats, long pauses, atrial fibrillation, and more.
- Heart Rate Variability Analysis: Provides short- and long-term variability metrics and predictive modules like HRT (heart rate turbulence).
- Pacemaker Rhythm Analysis: Detects and characterizes pacemaker signals (AAI, VVI, DDD).
- Portable & Lightweight: Compact recorder (~61.5 g) that is comfortable for ambulatory patients.
- Easy PC Integration: Data can be transferred to PC via USB or TF/SD card for review and comprehensive reporting.
