Description
| Weight | 6 kg |
|---|---|
| Dimensions | 30 × 20 × 20 cm |
| GTIN | 8900000221585 |
| HSN Code | 90278090 |
Test menu
Ready-to-use single-use cassettes

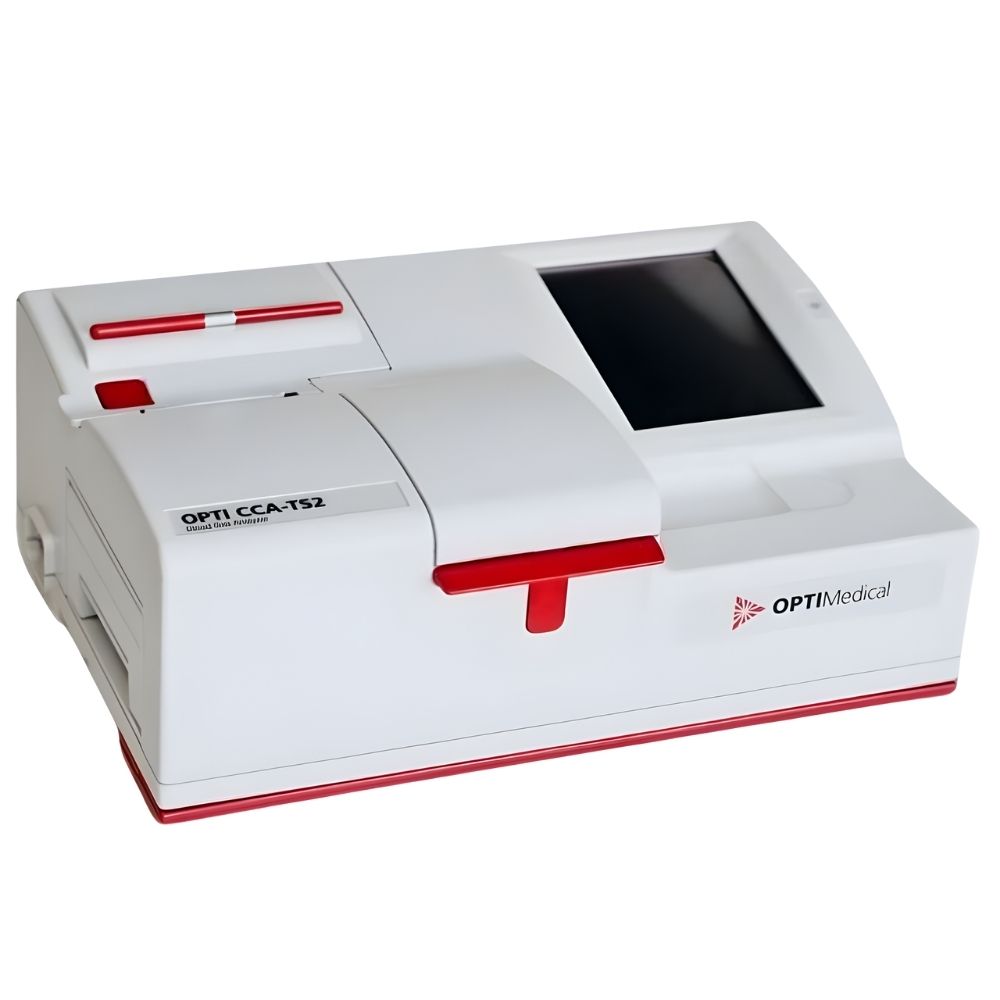

The OPTI CCA-TS2 Blood Gas and Electrolyte Analyzer uses ready-to-use single-use cassettes that let you test for a range of blood gas parameters:
| Cassette | Tests |
| B-Type | pH, PCO2, PO2, tHb, SO2 |
| E-Ca Type | pH, PCO2, PO2, tHb, SO2, Na+, K+, Ca++ |
| E-Cl Type | pH, PCO2, PO2, tHb, SO2, Na+, K+, Cl– |
| E-GLU Type | pH, PCO2, PO2, tHb, SO2, Na+, K+, GLU |
| B-LAC Type | pH, PCO2, PO2, tHb, SO2, LAC |
| B60 Type | pH, PCO2, PO2 |
| E-Lyte CCA Type | pH, Na+, K+, Cl–, Ca++ |
Sample Type |
Available Units |
Measurement Range |
Display Resolution |
||||
| Parameter | Whole Blood | Plasma | Serum | Default | Other | (Default Units) | (Low/High) |
| pH | x | x | x | pH units | 6.6–7.8 | 0.01/0.001 | |
| PCO2 | x | mmHg | kPa | 10-200 | 1/0.1 | ||
| PO2 | x | mmHg | kPa | 10-700 | 1/0.1 | ||
| Na+ | x | x | x | mmol/L | mg/dL | 100-180 | 1/0.1 |
| K+ | x | x | x | mmol/L | mg/dL | 0.8/9.99 | 0.1/0.01 |
| Ca++ | x | x | x | mmol/L | mg/dL | 0.2-3.0 | 0.01 |
| Cl– | x | x | x | mmol/L | mg/dL | 50-160 | 1/0.1 |
| GLU | x | x | x | mg/dL | mmol/L | 30–400/1.7–22 | 1/0.1 |
| LAC | x | mmol/L | mh/dL | 0.3–17.5 | 0.01/0.01 | ||
| tHb | x | g/dL | mmol/L | 5–25 | 0.1 | ||
| SO2 | x | % | g/L | 60–100 | 1/0.1 |
How to use
Blood gas sampling in 4 easy steps
The OPTI CCA-TS2 analyzer is easy to run:
- The user-friendly touch screen, with simple menu navigation, can be used with minimal training.
- Automated sample aspiration reduces staff time and training.
- Heated measuring chamber allows for testing of iced samples.
1. Scan the cassette bar code.
2. Remove the cassette from its packaging.
3. Place the cassette into the sample measurement chamber and close the cover.
4. Aspirate the sample. When sample aspiration and measurement is complete, the results will automatically appear on the screen.
B-Lac Cassette
Lactate and blood gas on a single cassette
The B-Lac Cassette provides fast results at the point of care*:
- Measures lactate, pH, PCO2, PO2, tHb, and SO2 in whole blood.
- An individually wrapped, disposable, single-use cassette contains all the elements needed for calibration, sample measurement, and waste containment.
- An important diagnostic tool for severe cases of COVID-19. An early diagnosis of sepsis has a substantial impact on the patient’s outcome.
- Continuous measurement of lactate levels provides useful information about the patient’s condition.
Measured Parameters |
Range |
Resolution |
| pH | 6.6 – 7.8 pH units | 0.001 pH units |
| PCO2 | 10 – 200 mmHg | 0.1 mmHg |
| PO2 | 10 – 700 mmHg | 0.1 mmHg |
| tHb | 5 – 25 g/dL | 0.1 g/dL |
| SO2 | 60% – 100% | 0.1% |
| Lactate | 0.4 – 17.5 mmol/L (2.7-157.7 mg/dL) | 0.01 mmol/L (0.1 mg/dL) |
| Barometric Pressure | 300 – 800 mmHg | 0.1 mmHg |
